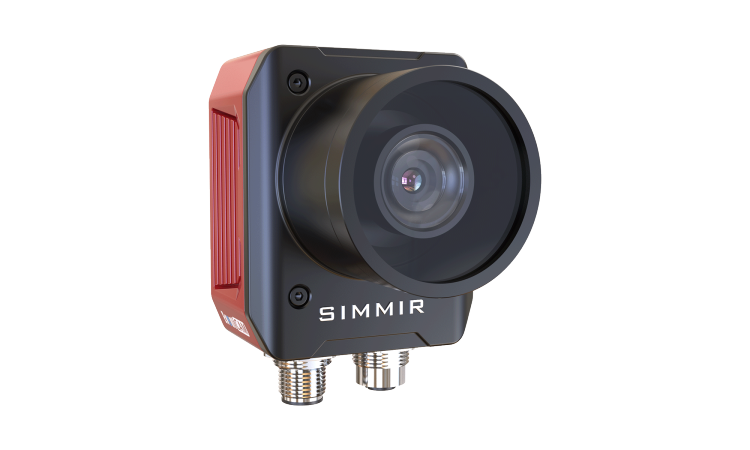

AI EventCAM 2D is an AI-powered video event trigger camera, which is an upgraded version of EventCAM 2D. Apart from all the original functions of EventCAM 2D, it is also equipped with AI and DSP engines to enhance the video understanding capability at the edge. A lightweight video processing AI network model and a real-time operating platform are embedded in the system to implement fast and accurate recognition of people's presence, action recognition, trajectory classification, anomaly detection, etc. AI EventCAM 2D also offers ultra-high 4K resolution and 240FPS frame rate. It was developed on the heterogeneous chip architecture platform, and the self-developed video understanding AI models were highly optimized. It incorporates a low-latency video encoding IP and ISP module to provide high-quality images and videos.
Product Advantages
Strong AI processing capability
Maximum frame rate up to 180FPS, fast action parsing within 50ms, edge-side hardware acceleration, efficient real-time AI analysis
Wide range of applications
Covering more than 98% of behavioral analysis scenarios, easy to deal with different environmental conditions and complex scenarios
Precision analysis
Embedded with 10+ behavioral understanding inference models trained on huge datasets, the accuracy of action analysis is less than 2%, and the analysis results are accurate and reliable.
Highly Compatible Scalability
Support more than 20 kinds of mainstream industrial protocol docking. Customizable AI recognition scenarios, complete SDK, rich calling interface.
Product parameters
| Product model | XMR-AI01 | XMR-AR464 | XMR-AR850 | XMR-POE464 | XMR-POE850 | XMR-ARJ462 | XMR-POEJ462 | XMR-ARJ130 | XMR-POEJ130 |
|---|---|---|---|---|---|---|---|---|---|
| Specifications | - | - | Low-Light Environment Specialized Series | POE | Low-Light Environment Specialized Series with POE | High Frame Rate | High Frame Rate;POE | Ultra High Frame Rate | Ultra High Frame Rate;POE |
| Pixels (M) | 8.3 | 4 | 8.3 | 4 | 8.3 | 2 | 2 | 1.3 | 1.3 |
| Resolution | 3840(H) × 2160(V) | 2688(H) × 1512(V) | 3840(H) × 2160(V) | 2688(H) × 1512(V) | 3840(H) × 2160(V) | 1920(H) × 1080(V) | 1920(H) × 1080(V) | 1280(H) × 1024(V) | 1280(H) × 1024(V) |
| Sensor | 1/1.8″ | 1/1.8″ | 1/1.73″ | 1/2.8″ | 1/1.73″ | 1/2.8″ | 1/2.8″ | 1/2.7″ | 1/2.7″ |
| Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter | Global Shutter |
| Frame Rate (FPS) | 60 | 90 | 60 | 90 | 60 | 120 | 120 | 180 | 180 |
| Voltage | 24 | 24 | 24 | - | - | 24 | - | 24 | - |
| Current (A) | < 0.4 | < 0.4 | < 0.4 | < 0.4 | < 0.4 | < 0.4 | < 0.4 | < 0.4 | < 0.4 |
| Mono/Color | Color | Color | Color | Color | Color | Color | Color | Color | Color |
| Lens Mount | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S |
| Light Source | White Light | White Light | White Light | White Light | White Light | White Light | White Light | White Light | White Light |
| Size (mm) | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 | 86.4 × 59.8 × 71 |
| Weight (g) | Roughly 300 | Roughly 300 | Roughly 300 | Roughly 300 | Roughly 300 | Roughly 300 | Roughly 300 | Roughly 300 | Roughly 300 |
| Installation Dimensions | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm |
| External Interfaces | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 |
| Digital I/O Interfaces | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays |
| Industrial Interfaces | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 |
| Industrial Protocols | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP |
| Operating Temperature | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ |
| Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Vibration Rating | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) |
| Certification | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC |
