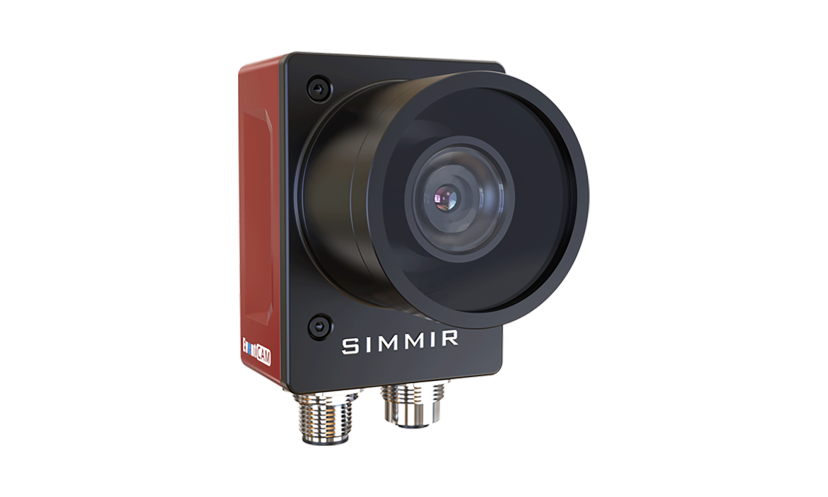

EventCAM 2D is an industrial event recording camera with high-performance image capture and video processing capabilities. It is capable of capturing and recording events within the industrial control system in real time, generating important short video records for further analyze and monitor. At the same time, it features industrial data collection and protocol streaming functions. It can integrate with PLCs or robots to obtain real-time status from the control system, including fault alerts, production signals, workpiece scanning results, etc. With comprehensive industrial bus communication protocols, it facilitates seamless integration with production lines. EventCAM 2D offers ultra-high 4K resolution and 240FPS frame rate. High-performance SOCs, ISPs, and low-latency video encoding IP are utilized in EventCAM 2D to ensure image quality.
Product Advantages
Multiple PLCs for efficient interfacing
Seamlessly compatible with more than 30 types of mainstream PLC, real-time PLC key information through the OSD on-screen display, data presentation is accurate and intuitive.
Intelligent Concurrent Recording
Support 7×24 hours continuous video recording, combined with external signal triggering mechanism, to efficiently distinguish between abnormal and normal video, to meet the demand for complex recording
Professional-grade data storage
The use of professional storage technology, to ensure convenient and efficient data storage, to protect the safety and reliability of video data, support at any time to trace the call
high frame rate HD
Equipped with 240FPS high-frame-rate shooting capability, outputs high-definition and fine images, accurately captures details, and meets the stringent image quality requirements of industrial scenes.
Product parameters
| Product model | XMR-ARJ335 | XMR-POEJ335 |
|---|---|---|
| Specifications | - | POE |
| Pixels (M) | 5 | 5 |
| Resolution | 2592(H) × 1944(V) | 2592(H) × 1944(V) |
| Sensor | 1/2.8″ | 1/2.8″ |
| Shutter | Rolling Shutter | Rolling Shutter |
| Frame Rate (FPS) | 60 | 30fps |
| Voltage | 24VDC | - |
| Current (A) | < 0.4 | < 0.4 |
| Mono/Color | Color | Color |
| Lens Mount | C/CS/S | C/CS/S |
| Light Source | White Light | White Light |
| Size (mm) | 83.4 × 51.8 × 71mm | 83.4 × 51.8 × 71mm |
| Weight (g) | Roughly 240 | Roughly 240 |
| Installation Dimensions | 2-M4, depth: 5mm, hole pitch: 35mm | 2-M4, depth: 5mm, hole pitch: 35mm |
| External Interfaces | M12 Aviation Plug*2 | M12 Aviation Plug*2 |
| Digital I/O Interfaces | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays |
| Industrial Interfaces | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 |
| Industrial Protocols | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP |
| Operating Temperature | -20℃~45℃ | -20℃~45℃ |
| Protection Rating | IP65 | IP65 |
| Vibration Rating | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) |
| Certification | CE/FCC | CE/FCC |

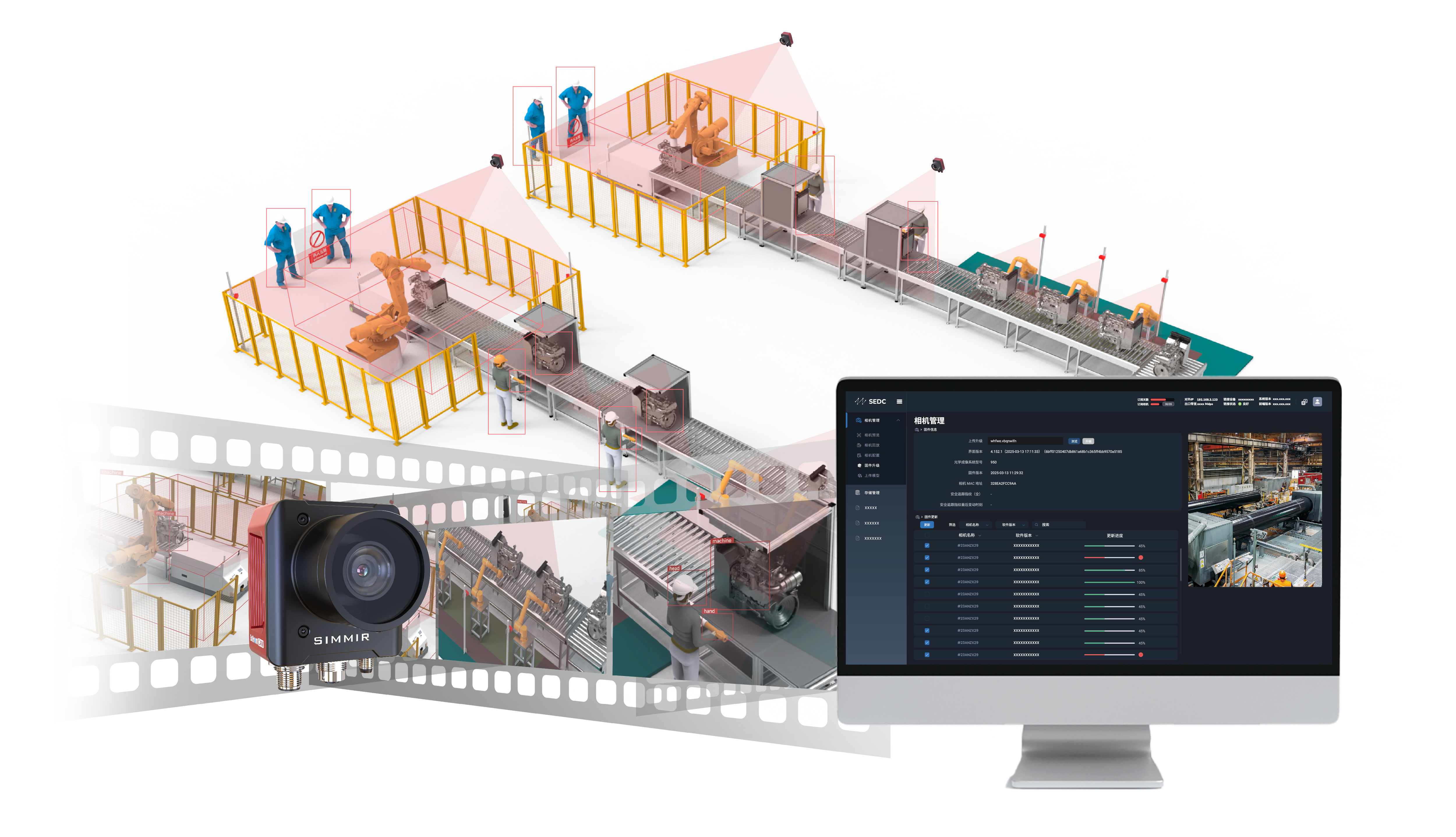

Solutions
Seamless docking of more than 30 kinds of mainstream PLC, PLC key information real-time OSD on the screen, the data show accurate and intuitive
has a strong concurrent video recording capability, 7 × 24 hours mode lasting video, and external signals instantly triggered to efficiently distinguish between abnormal and normal video
frame rate of up to 240FPS, the output of high-definition detailed images, details are clearly discernible, to meet the stringent needs of the industry
professional storage technology, data storage is convenient and efficient, to ensure that data is safe and reliable, and can be recalled at any time retrospectively. Professional storage technology, data storage is convenient and efficient, to ensure that the video data is safe and reliable, and can be recalled at any time retroactively.
