EventCAM® IR
EventCAM® IR

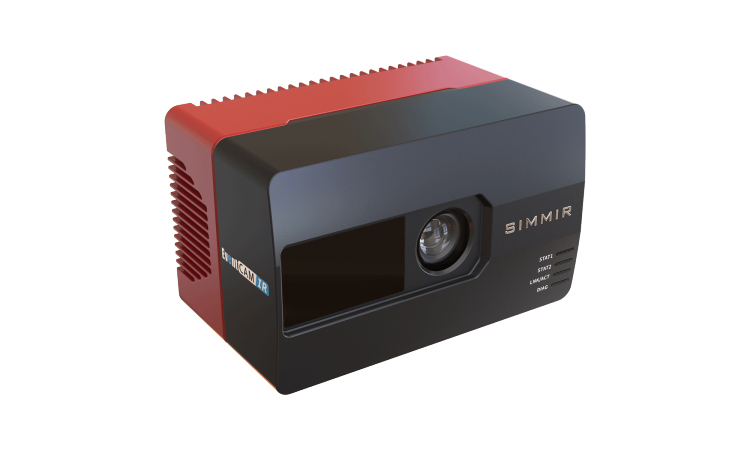

EventCAM IR is a product that remains isomorphic to EventCAM 2D under the hood and is consistent in how the software operates. It adds the function of temperature acquisition based on AI EventCAM 2D. EventCAM IR not only has the functions of a traditional 2D camera, but also has a complete embedded processing system, which can transfer high-quality RGB images and color temperature images. At the same time, it supports the use of its own AI processor to complete the calculation without connecting to an industrial PC. EventCAM IR supports a variety of functions out of the box and is easy to use due to the built-in video understanding algorithm. The system latency is also much better than the separated architecture, which can be flexibly applied in a variety of scenarios. It aims to further lower the barrier to AI infrared camera applications and enable zero-code deployment.
Product Advantages
Precision analysis
Embedded with multiple mega-data set AI models to accurately realize event analysis and intelligent reasoning, with up to 99% accuracy in scene understanding
Bispectral synergistic sensing
Combining infrared and visible dual-spectrum imaging capabilities, it breaks through the day and night, strong and weak light and other complex environmental limitations, and builds a full-time three-dimensional sensing system to cover the needs of multiple monitoring scenarios.
end-to-end technology
Innovative realization of deep synergy between edge-side video comprehension algorithms, model compression technology and chip architecture, optimizing local real-time computing performance and efficiently completing data processing and decision-making outputs
Adaptability
Support flexible installation and deployment, in-depth compatibility with domestic and foreign mainstream industrial robots and various types of industrial equipment, seamless integration into the industrial automation ecosystem, adapting to the needs of complex scenarios.
Product parameters
| Product model | XMR-POE95OIR | XMR-POE120IR | XMR-POEC02IR | XMR-POEC05IR | XMR-POEC12IR | XMR-POE130IR | XMR-AR950IR | XMR-ARK120IR | XMR-CG02IR | XMR-CG05IR | XMR-CG12IR | XMR-AR130IR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | POE power supply | - | - | - | - | - | - | - | - | - | - | - |
| Pixels (M) | 8 | 4 | 2.4 | 4 | 12 | 1.3 | 5 | 4 | 2.4 | 4 | 12 | 1.3 |
| Resolution (RGB) | 4 | 2.7 | 2 | 4 | 4 | 1 | 2592x1944 | 2.7 | 2 | 4 | 4 | 1 |
| Shutter | Rolling shutter | Global shutter | Rolling shutter | Global shutter | Global shutter | Global shutter | Global shutter | Global shutter | Global shutter | Global shutter | Global shutter | Global shutter |
| Target Surface Size | 1/1.8″ | 1/1.8″ | 1/1.7″ | 2/3″ | 1.1″ | 1/2.7″ | 1/2.8″ | 1/1.8″ | 1/1.7″ | 2/3″ | 1.1″ | 1/2.7″ |
| Frame Rate | 60 | 166 | 73 | 30 | 240 | 60 | 166 | 73 | 30 | 240 | 240 | 240 |
| Voltage | - | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Current (A) | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 |
| Type of detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector | Uncooled vanadium oxide focal plane detector |
| Pixel of detector | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 | 640×512 384x288 1280x1024 |
| Pixel size | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm | 12μm |
| Thermal sensitivity | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 | ≤40mK@f/1.0 |
| Focus | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm |
| Temperature range | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C | -20°C~+150°C，0°C~+550°C |
| Vision control | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color | Brightness, contrast, detail enhancement, noise reduction, pseudo-color |
| Mono/ Color | colour | colour | colour | colour | colour | colour | colour | colour | colour | colour | colour | colour |
| Lens Mount | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S |
| Light Source | White | White | White | White | White | White | White | White | White | White | White | White |
| Size (mm) | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 | 114 × 71 × 70 |
| Weight (g) | About550 | About550 | About550 | About550 | About550 | About550 | About550 | About550 | About550 | About550 | About550 | About550 |
| Installation Dimensions | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm | 2-M4, depth 5mm, hole spacing 35mm |
| External Interfaces | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 | M12 aviation plug *2 |
| Digital I/O Interfaces | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays | 4 optical coupling isolated input and output, 24V PNP/NPN; The driving capacity is 50mA, which can drive small and medium-sized relays |
| Industrial Interfaces | Fast Ethernet (1000Mbit/s) | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 | Fast Ethernet (1000Mbit/s)；RS-485 |
| Industrial Protocols | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP | ModbusTCP/RTU、TCP/IP、UDP、FTP、RTSP、Websocket、profinet、Ethernet/IP |
| Operating Temperature | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ |
| Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Vibration Rating | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) |
| Certification | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC |
