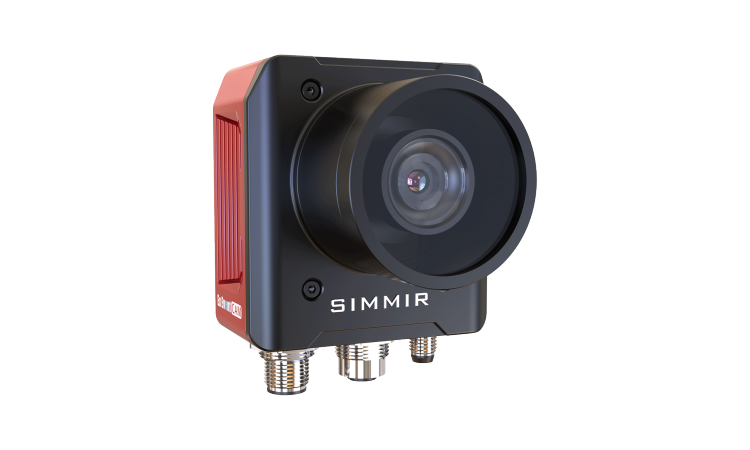

EX EventCAM 2D is an industrial event trigger camera that complies with the Ex ib IIC T6 Gb/Ex ib IIIC T80°C Db intrinsic safe explosion protection standards for harsh conditions in explosive atmospheres. The EX version is an extended version of the EventCAM 2D and AI EventCAM 2D. Its hardware has been specially adjusted to meet the requirements of automated production lines for pyrotechnic products as well as flammable and explosive products. Overall hardware optimizations including on circuit design, electronic components, manufacturing processes, housing structure, assembly processes, as well as testing and aging processes. Significant improvements and enhancements have been made, particularly in protection rating, power supply safety, short-circuit protection, overheating detection, and alarm.
Product Advantages
safe and reliable
Meet Ex ib IIC T6 Gb/Ex ib IIIC T80℃ Db Intrinsically Safe Explosion-proof Standard, support for use in explosive environments
Precision analysis
Embedded multiple pre-trained models for video comprehension reasoning trained on very large datasets
wide range of applications
Automated production line scenarios covering most pyrotechnic and flammable/explosive products.
Strong adaptability
Compatible with most of the mainstream brands of domestic and foreign robots and various types of industrial equipment
Product parameters
| Product model | XMR-EX464 | XMR-EX850 | XMR-EXJ335 | XMR-EXJ462 | XMR-EXJ130 |
|---|---|---|---|---|---|
| Specifications | AI Intrinsic Safety Explosion-Proof Series | Explosion-Proof Series for Low-Light Environments | Intrinsic Safety Explosion-Proof Series | AI Intrinsic Safety Explosion-Proof Series | AI Intrinsic Safety Explosion-Proof Series |
| Pixels (M) | 4 | 8.3 | 5 | 2 | 1.3 |
| Resolution | 2688(H) × 1512(V) | 3840(H) × 2160(V) | 2592(H) × 1944(V) | 1920(H) × 1080(V) | 1280(H) × 1024(V) |
| Sensor | 1/1.8″ | 1/1.8″ | 1/2.8″ | 1/2.8″ | 1/2.7″ |
| Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Frame Rate (FPS) | 90 | 60 | 60 | 120 | 180 |
| Voltage | 9 | 9 | 9 | 9 | 9 |
| Current (A) | 2 | 2 | 2 | 2 | 2 |
| Mono/Color | Color | Color | Color | Color | Color |
| Lens Mount | C/CS/S | C/CS/S | C/CS/S | C/CS/S | C/CS/S |
| Light Source | White Light | White Light | White Light | White Light | White Light |
| Size (mm) | 86.4 × 67.8 × 71 | 86.4 × 67.8 × 71 | 86.4 × 67.8 × 71 | 86.4 × 67.8 × 71 | 86.4 × 67.8 × 71 |
| Weight (g) | 300 | 300 | 300 | 300 | 300 |
| Installation Dimensions | 2-M4, depth: 5mm, hole pitch: 43mm | 2-M4, depth: 5mm, hole pitch: 43mm | 2-M4, depth: 5mm, hole pitch: 43mm | 2-M4, depth: 5mm, hole pitch: 43mm | 2-M4, depth: 5mm, hole pitch: 43mm |
| External Interfaces | M12 Aviation Plug*2; M8 Aviation Plug*1 | M12 Aviation Plug*2; M8 Aviation Plug*1 | M12 Aviation Plug*2; M8 Aviation Plug*1 | M12 Aviation Plug*2; M8 Aviation Plug*1 | M12 Aviation Plug*2; M8 Aviation Plug*1 |
| Digital I/O Interfaces | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays |
| Industrial Interfaces | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 |
| Industrial Protocols | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP |
| Operating Temperature | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ |
| Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Vibration Rating | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) |
| Certification | CE/FCC | CE/FCC | CE/FCC | CE/FCC | CE/FCC |
Solutions

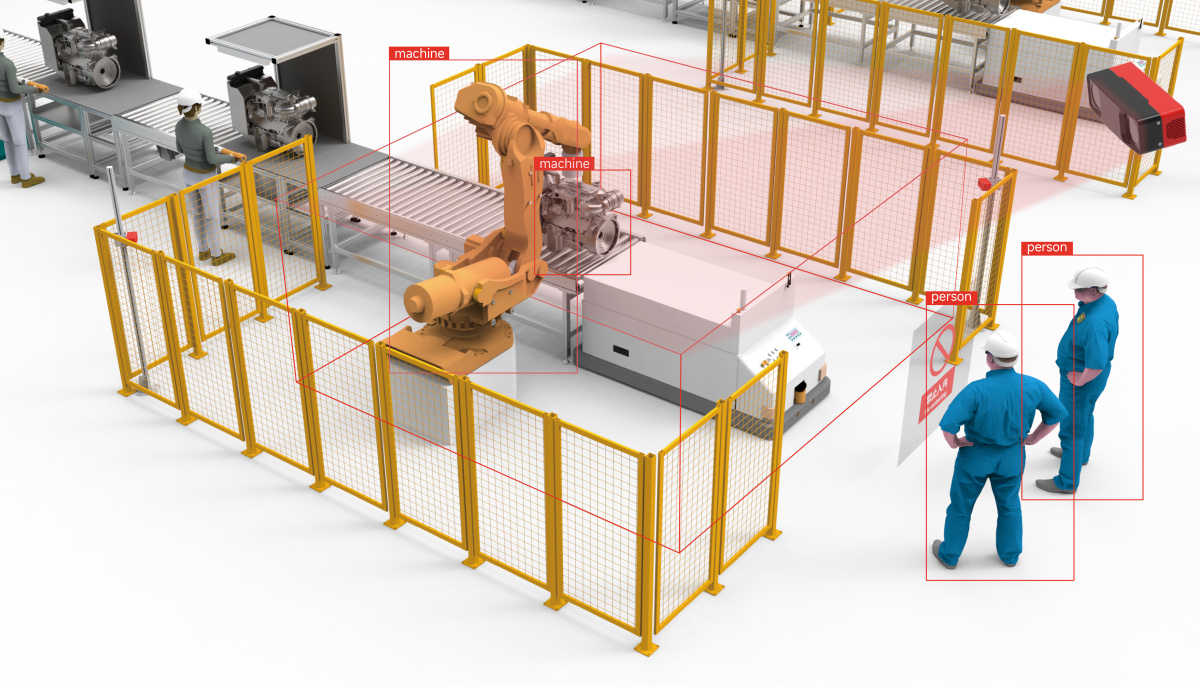

AI industrial safety camera, accurate control of production risk areas
Prevent area personnel invasion, detention, people and vehicles mixed in and other dangerous situations
Edge camera-side computing, milliseconds response speed, 50ms to complete the image acquisition-Al analysis-signal output
Visual safety Yu design, the authoritative body issued PLd level of security certificates, can be a complete replacement of the machine scanning radar and security grating
