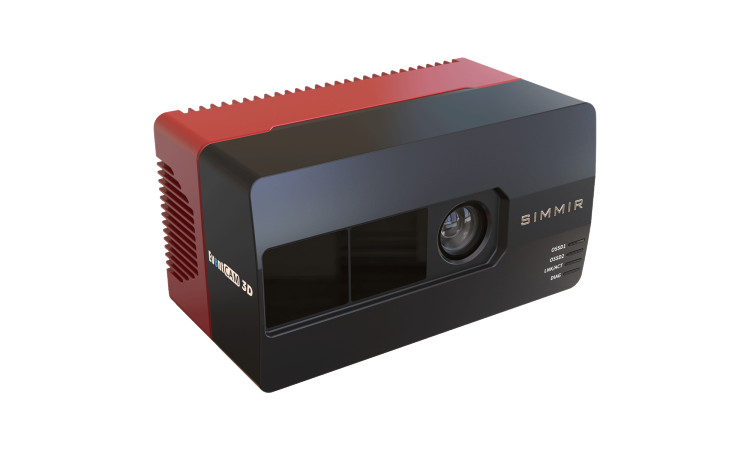

EventCAM 3D is a product isomorphic to EventCAM 2D in terms of the underlying structure, and their operation is also the same. It adds 3D image capture and computation to AI EventCAM 2D. EventCAM 3D combines traditional 3D camera features with an embedded processing system. It is capable of transmitting high-quality RGB-D images and supports AI processing without the need for a separate industrial computer, thanks to its integrated AI processor. With the embedded self-developed video understanding algorithms, EventCAM 3D supports a wide range of out-of-the-box features, making it very user-friendly. Its system latency is also far lower than separated architectures, allowing flexible applications in various scenarios. It aims to further lower the barriers of 3D+AI applications and realize codeless deployment.
Product Advantages
Two-optical high-precision imaging
Fusion of dToF and visible light dual imaging, high point cloud accuracy, accurate reproduction of complex scene 3D details
Toolchain ease of use
Support customized three-dimensional space foreign object intrusion, abnormal trajectory detection, adapting to diverse scenarios. Support all mainstream industrial protocols
Innovation Architecture
Self-developed edge-side acceleration hardware, integrated 2D/3D heterogeneous chips, efficient computing power, real-time processing of bispectral data to cope with complex scenes
Adaptability
Support flexible installation and deployment, without complex debugging. Compatible with all kinds of mainstream industrial equipment on the market, seamlessly integrated into the industrial automation ecosystem.
Product parameters
| Product model | XMR-3D01 | XMR-3D02 | XMR-3D03 | XMR-3D04 |
|---|---|---|---|---|
| Specifications | Series with Wide Angle | Series with Normal Field of View | Series with Wide Angle | Series with Normal Field of View |
| Pixels (M) | — | — | — | — |
| Resolution (RGB) | 2688(H) × 1512(V) | 2688(H) × 1512(V) | 3840(H) × 2160(V) | 3840(H) × 2160(V) |
| Resoltuion (TOF) | 640(H) × 480(V) | 640(H) × 480(V) | 640(H) × 480(V) | 640(H) × 480(V) |
| Target Surface Size (RGB) | 90 × 55 | 50 × 39 | 90 × 55 | 50 × 39 |
| Target Surface Size (TOF) | 105 × 75 | 64 × 50 | 105 × 75 | 64 × 50 |
| Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
| Frame Rate | 75 | 75 | 30 | 30 |
| Voltage | 24 | 24 | 24 | 24 |
| Current (A) | 3 | 3 | 3 | 3 |
| Mono/ Color | Color | Color | Color | Color |
| Lens Mount | S | S | S | S |
| Light Source | 940nm Vesel | 940nm Vesel | 940nm Vesel | 940nm Vesel |
| Size (mm) | 130 × 70 × 78 | 130 × 70 × 78 | 130 × 70 × 78 | 130 × 70 × 78 |
| Weight (g) | 1500 | 1500 | 1500 | 1500 |
| Installation Dimensions | 4-M5, depth: 5mm, hole pitch: 56 × 56mm | 4-M5, depth: 5mm, hole pitch: 56 × 56mm | 4-M5, depth: 5mm, hole pitch: 56 × 56mm | 4-M5, depth: 5mm, hole pitch: 56 × 56mm |
| External Interfaces | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 | M12 Aviation Plug*2 |
| Digital I/O Interfaces | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays | 4 channels of optocoupler isolated I/Os, 24V PNP/NPN;Driving capacity of 50mA, able to drive small and medium-sized relays |
| Industrial Interfaces | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 | Fast Ethernet (1000Mbit/s); RS-485 |
| Industrial Protocols | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP | ModbusTCP/RTU, TCP/IP, UDP, FTP, RTSP, Websocket, profinet, Ethernet/IP |
| Operating Temperature | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ | -20℃~45℃ |
| Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Vibration Rating | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) | 4gs(30min 10-120Hz) |
| Certification | CE/FCC | CE/FCC | CE/FCC | CE/FCC |
